Out of productionCessna
Citation II / II/SP
- Light Jet
- 7 pax
- 1,220 nm
Light JetOut of production
Cessna (Textron Aviation)
- Passengers
- 7
- Range
- 1,220 nm
- Max cruise
- 397 ktas
- Cabin height
- 4.8 ft
- Max altitude
- 43,000 ft
01 · Basic info
Cessna Citation V
The Model 560 Citation V is a stretched development of the Citation S/II with JT15D-5A turbofans and a cabin with seven windows per side, certified by the FAA on December 9, 1988. Cessna delivered 262 aircraft between April 1989 and mid-1994, after which it was succeeded by the Citation Ultra.
- Manufacturer
- Cessna (Textron Aviation)
- Class
- Light Jet
- Production
- Out of production
- First delivery
- 1989
- Last delivery
- 1994
- Engines
- 2 × Pratt & Whitney Canada JT15D-5A
1 / 2

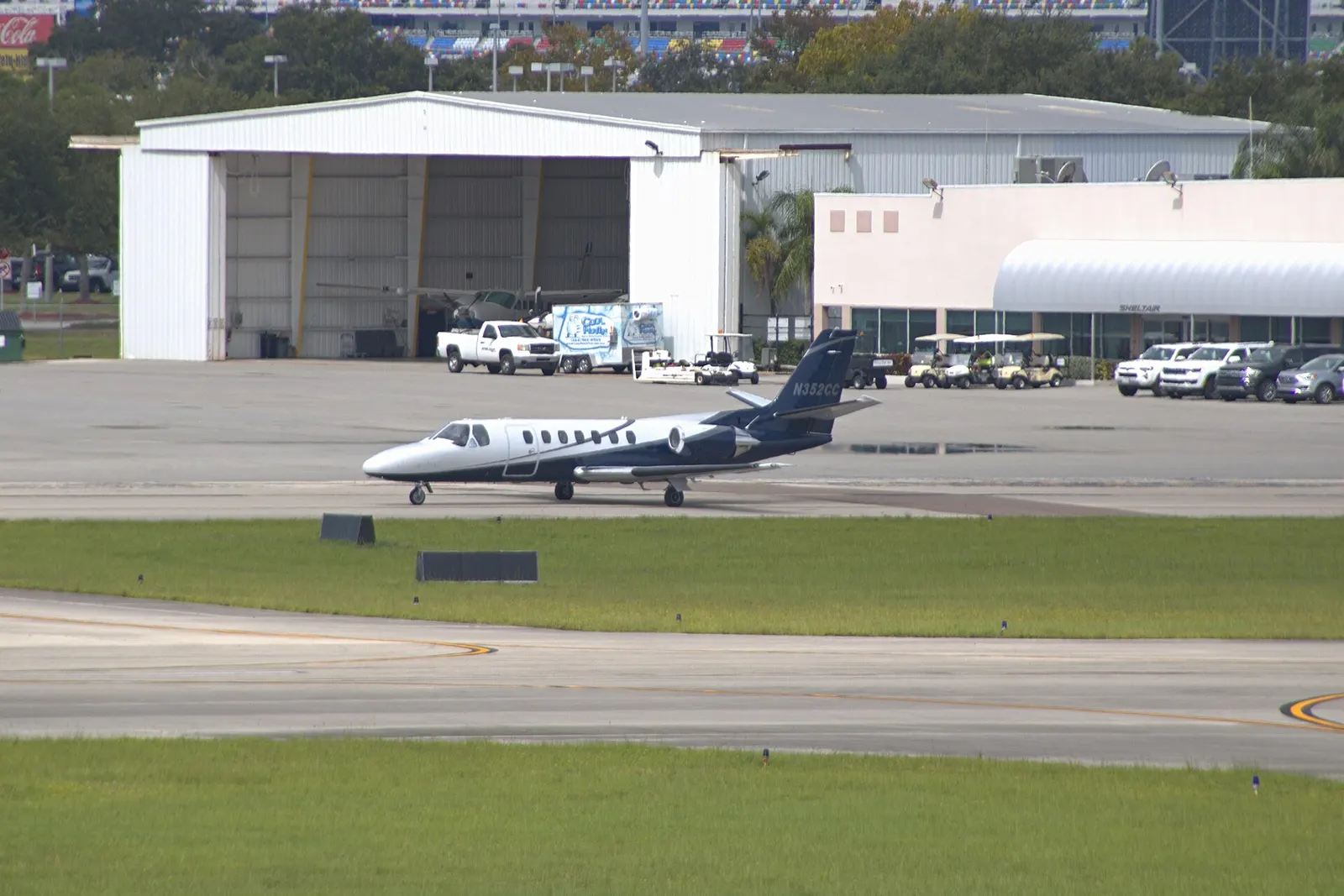

Photo: ZLEA · Wikimedia Commons · CC BY-SA 4.0
02 · Specifications
Technical data
Capacity
- Flight crew
- 2
- Seats (typical)
- 7
- Seats (maximum)
- 11
- Cabin length
- 17.33 ft
- Cabin width
- 4.83 ft
- Cabin height
- 4.8 ft
- Max payload with full fuel
- 930 lb
Weights
- Max take-off weight
- 15,900 lb
- Max fuel
- 5,770 lb
Performance
- Range
- 1,220 nm
- Range conditions
- All passenger seats occupied, NBAA IFR reserves (Business Jet Traveler aircraft directory figure)
- Max cruise speed
- 397 ktas
- Max operating altitude
- 43,000 ft
- Take-off distance
- 3,560 ft
Powerplant
- Engines
- 2 × Pratt & Whitney Canada JT15D-5A
- Thrust (each)
- 2,900 lbf
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cabin width
4.83 ft / 1.47 m
Cabin height
4.80 ft / 1.46 m
- Club seating
- Seating
- Lavatory
- Baggage
04 · Range map
Where the Citation V can fly nonstop
Range shown
1,220 nm
Published OEM range (All passenger seats occupied, NBAA IFR reserves (Business Jet Traveler aircraft directory figure)): 1,220 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
Nonstop from Dubai (DWC)
- Riyadh461 nm
- Mumbai1,044 nm
- Cairo1,301 nm
- Istanbul1,642 nm
- Nairobi1,898 nm
- Moscow2,004 nm
- Nice2,588 nm
- Geneva2,662 nm
- Paris2,840 nm
- London2,977 nm
- Singapore3,160 nm
- Lagos3,169 nm
- Hong Kong3,211 nm
- Johannesburg3,439 nm
- Dakar4,084 nm
- Tokyo4,305 nm
- New York5,951 nm
- Sydney6,502 nm
- São Paulo6,580 nm
- Miami6,810 nm
- Los Angeles7,240 nm
- Buenos Aires7,365 nm
- Mexico City7,769 nm
