Out of productionEmbraer
Phenom 100
- Very Light Jet
- 1,178 nm
Very Light JetOut of production
Embraer
- Passengers
- 7
- Range
- 1,178 nm
- Max cruise
- 405 ktas
- Cabin height
- 4.92 ft
- Max altitude
- 41,000 ft
01 · Basic info
Embraer Phenom 100EV
Phenom 100 'Evolution' variant with Garmin G3000-based Prodigy Touch avionics, weight savings and PW617F1-E engines rated at 1,730 lbf, which shortened time to climb and improved hot-and-high takeoff performance. It was first delivered on 31 March 2017 and was succeeded by the Phenom 100EX in 2023.
- Manufacturer
- Embraer
- Class
- Very Light Jet
- Production
- Out of production
- First delivery
- 2017
- Engines
- 2 × Pratt & Whitney Canada PW617F1-E

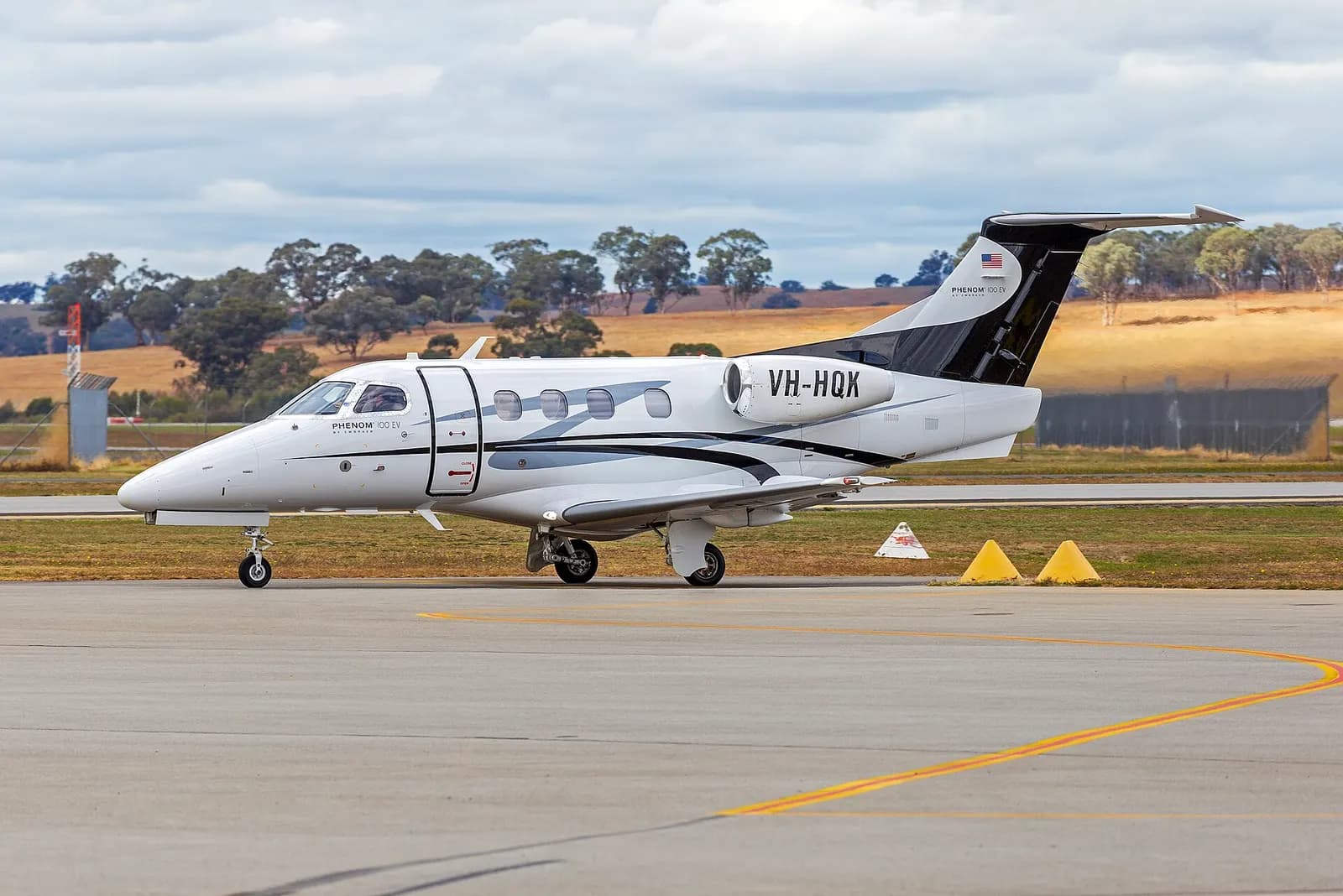

Photo: Bidgee · Wikimedia Commons · CC BY-SA 3.0 au
02 · Specifications
Technical data
Capacity
- Flight crew
- 1
- Seats (maximum)
- 7
- Cabin length
- 10.99 ft
- Cabin height
- 4.92 ft
Powerplant
- Engines
- 2 × Pratt & Whitney Canada PW617F1-E
- Thrust (each)
- 1,730 lbf
Weights
- Max take-off weight
- 10,582 lb
- Max fuel
- 2,804 lb
Performance
- Range
- 1,178 nm
- Range conditions
- LRC, 4 occupants at 200 lb, NBAA IFR reserves with 100 nm alternate
- Max cruise speed
- 405 ktas
- Max operating Mach (MMO)
- M 0.7
- Max operating altitude
- 41,000 ft
- Take-off distance
- 3,199 ft
- Landing distance
- 2,430 ft
External dimensions
- Length
- 42.06 ft
- Height
- 14.27 ft
- Wingspan
- 40.35 ft
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cross-section data not published
Cabin width
–
Cabin height
4.92 ft / 1.50 m
- Club seating
- Seating
- Lavatory
- Baggage
04 · Range map
Where the Phenom 100EV can fly nonstop
Range shown
1,178 nm
Published OEM range (LRC, 4 occupants at 200 lb, NBAA IFR reserves with 100 nm alternate): 1,178 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
Nonstop from Dubai (DWC)
- Riyadh461 nm
- Mumbai1,044 nm
- Cairo1,301 nm
- Istanbul1,642 nm
- Nairobi1,898 nm
- Moscow2,004 nm
- Nice2,588 nm
- Geneva2,662 nm
- Paris2,840 nm
- London2,977 nm
- Singapore3,160 nm
- Lagos3,169 nm
- Hong Kong3,211 nm
- Johannesburg3,439 nm
- Dakar4,084 nm
- Tokyo4,305 nm
- New York5,951 nm
- Sydney6,502 nm
- São Paulo6,580 nm
- Miami6,810 nm
- Los Angeles7,240 nm
- Buenos Aires7,365 nm
- Mexico City7,769 nm
