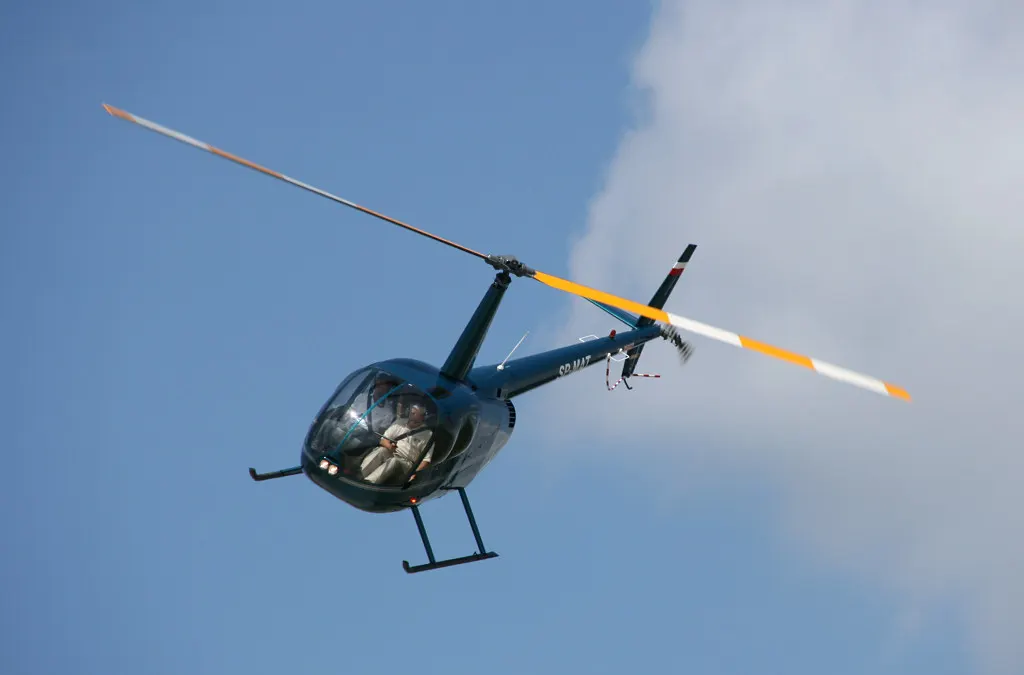

Robinson
R44 Raven II
- Light Helicopter
- 3 pax
- 300 nm
Light HelicopterOut of production
MD Helicopters
- Passengers
- 6
- Range
- 293 nm
- Max cruise
- 134 ktas
- Ceiling
- 17,500 ft
01 · Basic info

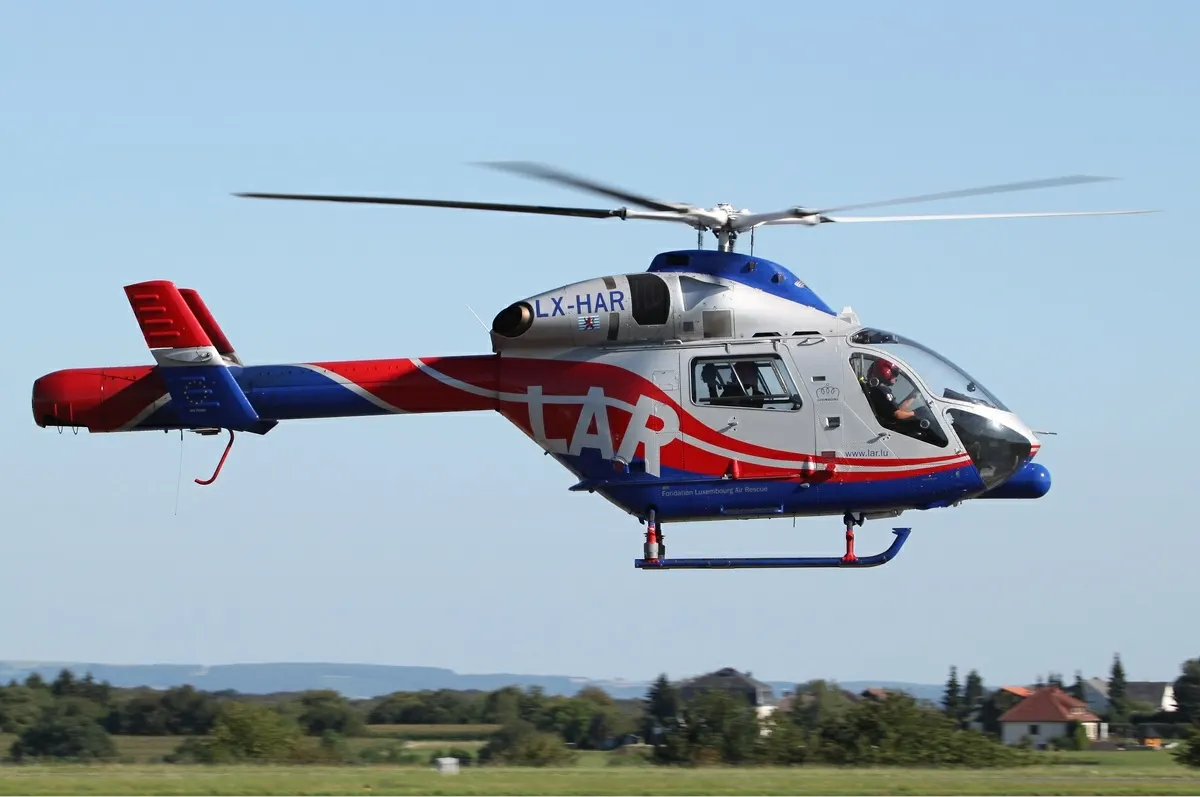

MD Helicopters MD 902 Explorer
The MD 902 Explorer is a twin-engine light helicopter that uses the NOTAR anti-torque system instead of a tail rotor. It was developed from the MD 900 with improved engines and inlets and seats up to six passengers. It is not listed among MD Helicopters' current models.
- Manufacturer
- MD Helicopters
- Class
- Light Helicopter
- Production
- Out of production
- Engines
- 2 × Pratt & Whitney Canada PW206E
1 / 3
Photo: Peter Bakema · Wikimedia Commons · GFDL 1.2
02 · Specifications
Technical data
Capacity
- Flight crew
- 1
- Seats (maximum)
- 6
Powerplant
- Engines
- 2 × Pratt & Whitney Canada PW206E
- Power (each)
- 550 shp
Weights
- Max take-off weight
- 6,250 lb
Performance
- Range
- 293 nm
- Range conditions
- Per Jane's via Wikipedia
- Max cruise speed
- 134 ktas
- Rate of climb
- 1,000 fpm
- Service ceiling
- 17,500 ft
External dimensions
- Height
- 12 ft
- Main rotor diameter
- 33.83 ft
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cross-section data not published
Cabin width
–
Cabin height
–
- Club seating
- Baggage
04 · Range map
Where the MD 902 Explorer can fly nonstop
Range shown
293 nm
Published OEM range (Per Jane's via Wikipedia): 293 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
