01 · Basic info
Cessna Citation Excel
The Model 560XL Citation Excel combines a shortened Citation X stand-up cabin with an unswept supercritical wing derived from the Citation S/II and the tail of the Citation V, powered by Pratt & Whitney Canada PW545A turbofans. It first flew on February 29, 1996 and was certified in April 1998. A total of 308 were built before production switched to the Citation XLS.
- Manufacturer
- Cessna (Textron Aviation)
- Class
- Midsize Jet
- Production
- Out of production
- First delivery
- 1998
- Last delivery
- 2004
- Engines
- 2 × Pratt & Whitney Canada PW545A
1 / 4

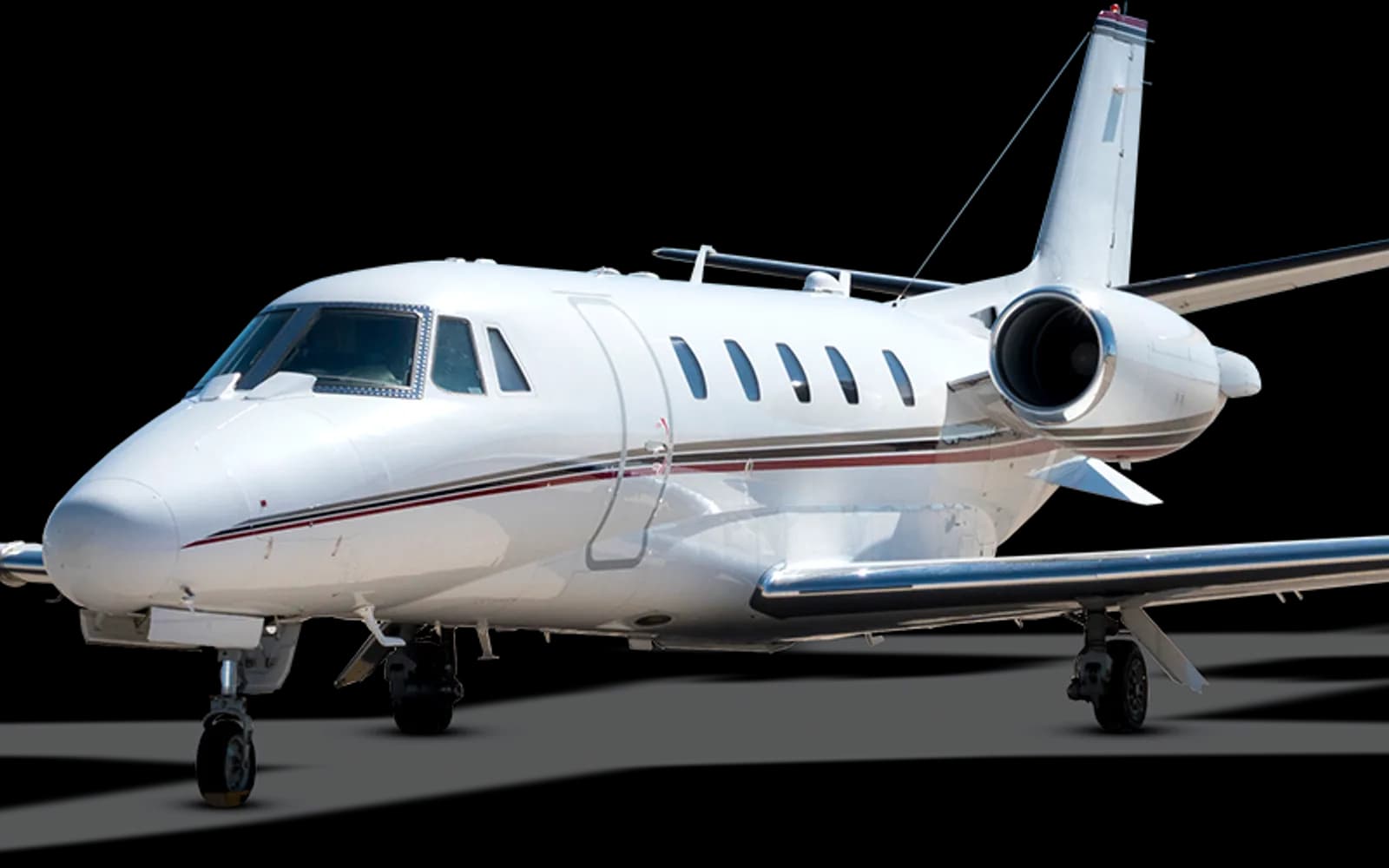

Photo: Textron Aviation · Wikimedia Commons · © Textron Aviation, manufacturer image
02 · Specifications
Technical data
Capacity
- Flight crew
- 2
- Seats (typical)
- 7
- Seats (maximum)
- 11
- Cabin length
- 18.5 ft
- Cabin width
- 5.5 ft
- Cabin height
- 5.7 ft
- Max payload
- 2,690 lb
- Max payload with full fuel
- 1,150 lb
External dimensions
- Length
- 51.8 ft
- Height
- 17.2 ft
- Wingspan
- 55.7 ft
Performance
- Range
- 2,080 nm
- Range conditions
- 4 passengers and 2 crew (Cessna published figure)
- Max cruise speed
- 431 ktas
- Max operating Mach (MMO)
- M 0.75
- Rate of climb
- 3,790 fpm
- Max operating altitude
- 45,000 ft
- Take-off distance
- 4,100 ft
Powerplant
- Engines
- 2 × Pratt & Whitney Canada PW545A
- Thrust (each)
- 3,804 lbf
Weights
- Max take-off weight
- 20,000 lb
- Max landing weight
- 18,700 lb
- Max fuel
- 6,740 lb
- Basic operating weight
- 12,310 lb
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cabin width
5.50 ft / 1.68 m
Cabin height
5.70 ft / 1.74 m
- Club seating
- Seating
- Lavatory
- Baggage
04 · Range map
Where the Citation Excel can fly nonstop
Range shown
2,080 nm
Published OEM range (4 passengers and 2 crew (Cessna published figure)): 2,080 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
Nonstop from Dubai (DWC)
- Riyadh461 nm
- Mumbai1,044 nm
- Cairo1,301 nm
- Istanbul1,642 nm
- Nairobi1,898 nm
- Moscow2,004 nm
- Nice2,588 nm
- Geneva2,662 nm
- Paris2,840 nm
- London2,977 nm
- Singapore3,160 nm
- Lagos3,169 nm
- Hong Kong3,211 nm
- Johannesburg3,439 nm
- Dakar4,084 nm
- Tokyo4,305 nm
- New York5,951 nm
- Sydney6,502 nm
- São Paulo6,580 nm
- Miami6,810 nm
- Los Angeles7,240 nm
- Buenos Aires7,365 nm
- Mexico City7,769 nm
