01 · Basic info
Cessna Citation Mustang
The Citation Mustang (Model 510) is a single-pilot-certified very light jet powered by two Pratt & Whitney Canada PW615F turbofans and fitted with a Garmin G1000 flight deck. Production ended in 2017 after 475 aircraft were built over roughly 12 years.
- Manufacturer
- Cessna (Textron Aviation)
- Class
- Very Light Jet
- Production
- Out of production
- First delivery
- 2006
- Last delivery
- 2017
- Engines
- 2 × Pratt & Whitney Canada PW615F
1 / 4

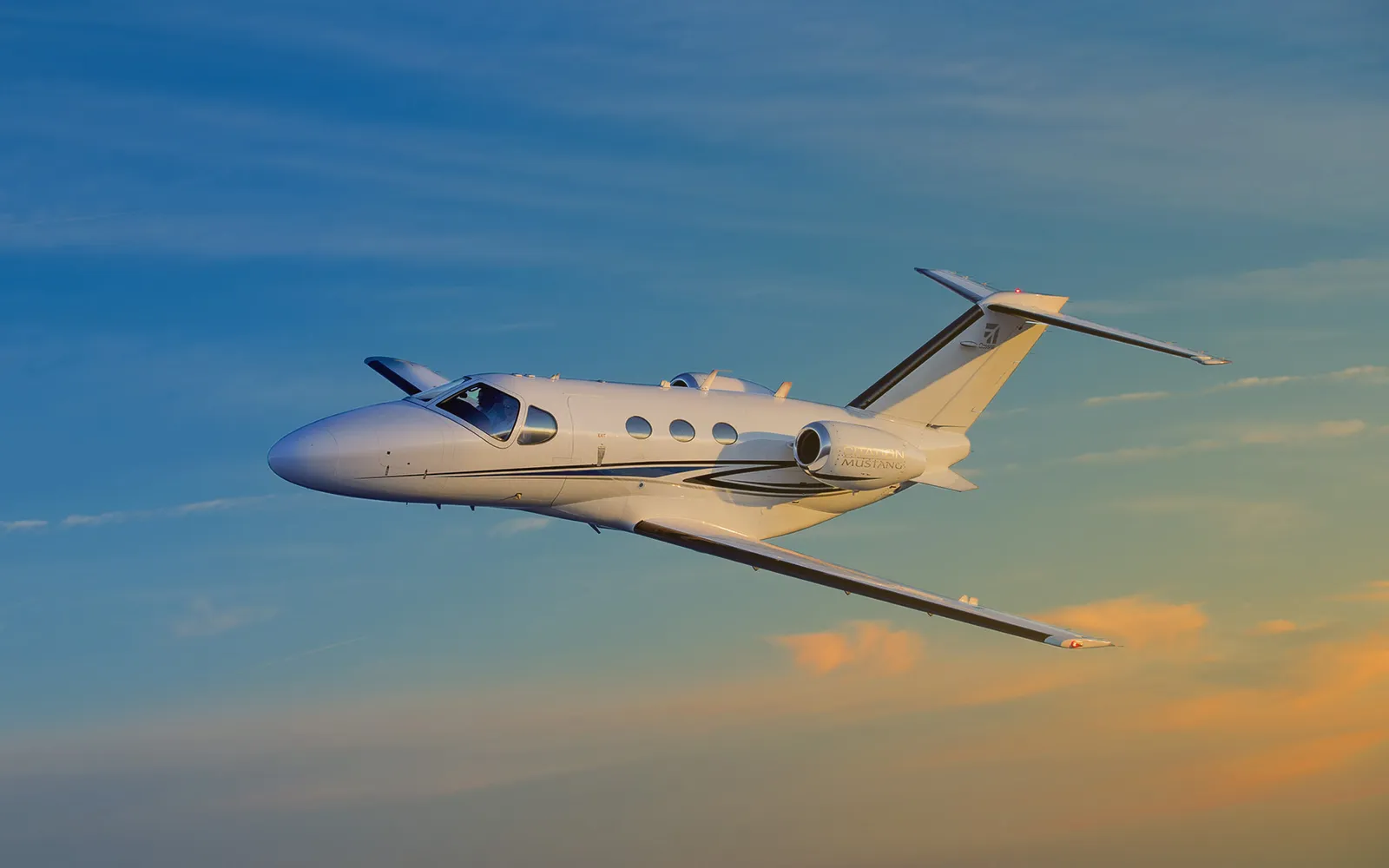

Photo: Textron Aviation · Wikimedia Commons · © Textron Aviation, manufacturer image
02 · Specifications
Technical data
Budget
- Indicative new list price (2009)
- $2.86M
Performance
- Range
- 1,167 nm
- Range conditions
- At maximum takeoff weight (Wikipedia figure of 1,343 statute miles converted to nm)
- Max cruise speed
- 340 ktas
- Rate of climb
- 3,010 fpm
- Max operating altitude
- 41,000 ft
Powerplant
- Engines
- 2 × Pratt & Whitney Canada PW615F
- Thrust (each)
- 1,460 lbf
Weights
- Max take-off weight
- 8,645 lb
Capacity
- Flight crew
- 1
- Seats (typical)
- 4
- Seats (maximum)
- 5
- Cabin length
- 9.8 ft
- Cabin width
- 4.6 ft
- Cabin height
- 4.5 ft
- Overall baggage volume
- 63 cu ft
- Max payload with full fuel
- 600 lb
External dimensions
- Length
- 40.58 ft
- Height
- 13.42 ft
- Wingspan
- 43.17 ft
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cabin width
4.60 ft / 1.40 m
Cabin height
4.50 ft / 1.37 m
- Club seating
- Baggage
04 · Range map
Where the Citation Mustang can fly nonstop
Range shown
1,167 nm
Published OEM range (At maximum takeoff weight (Wikipedia figure of 1,343 statute miles converted to nm)): 1,167 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
