01 · Basic info
Daher TBM 700
The TBM 700 is a pressurized single-engine turboprop developed by SOCATA and Mooney and certified in 1990. It is powered by a Pratt & Whitney Canada PT6A-64 flat-rated to 700 shp; later TBM 700C2 aircraft raised maximum takeoff weight from 6,578 lb to 7,394 lb. About 324 were built between 1990 and 2005.
- Manufacturer
- Daher
- Class
- Single Turboprop
- Production
- Out of production
- First delivery
- 1990
- Last delivery
- 2005
- Engines
- 1 × Pratt & Whitney Canada PT6A-64
1 / 3

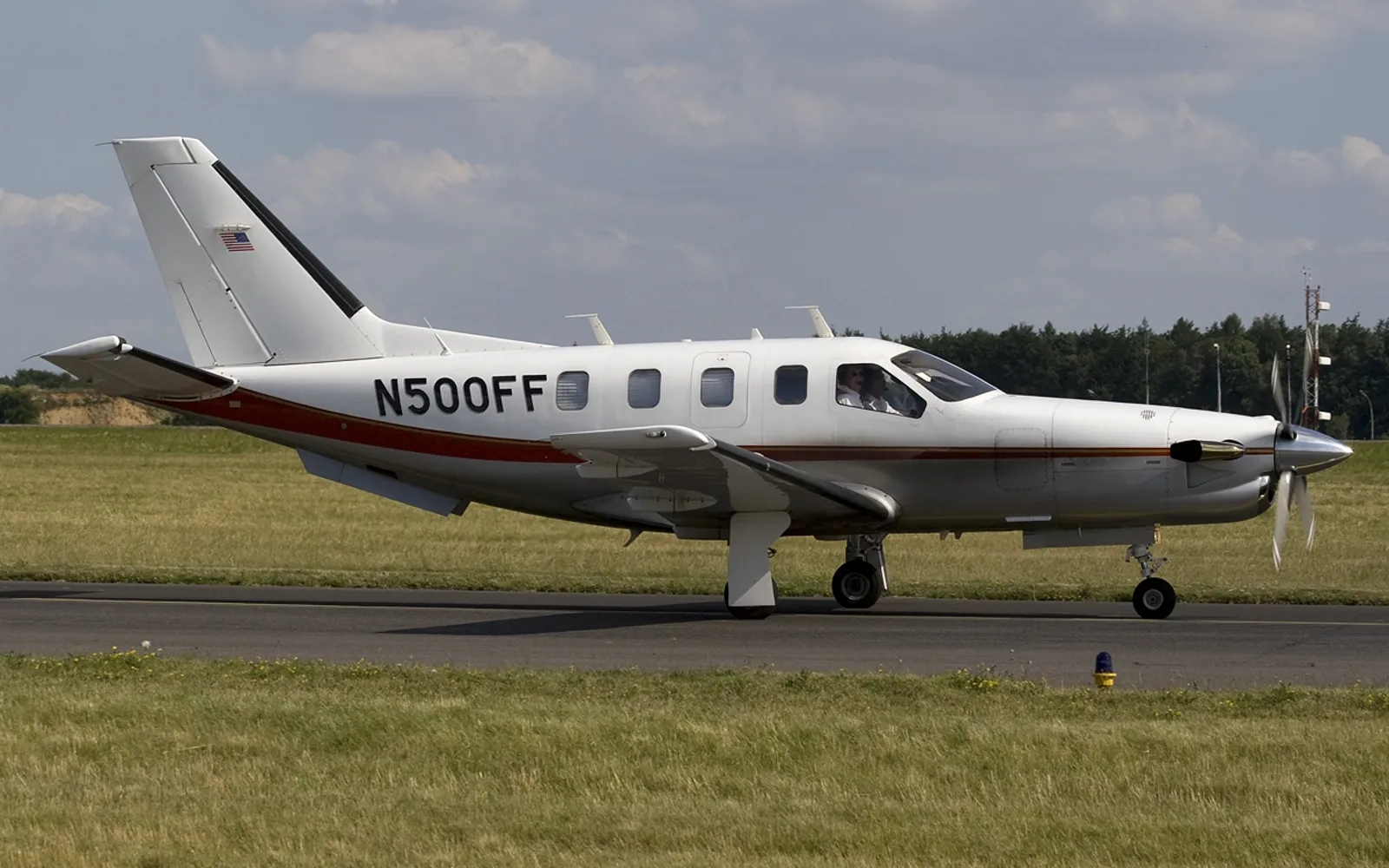

Photo: Peter Bakema (Wikimedia Commons) · Wikimedia Commons · GFDL 1.2
02 · Specifications
Technical data
Capacity
- Flight crew
- 1
Powerplant
- Engines
- 1 × Pratt & Whitney Canada PT6A-64
- Power (each)
- 700 shp
External dimensions
- Length
- 34.92 ft
- Height
- 14.27 ft
- Wingspan
- 41.6 ft
Performance
- Range
- 1,550 nm
- Range conditions
- Max fuel at economical cruise (243 KTAS at 30,000 ft), 45 min reserve; TBM 700 early-model data
- Max cruise speed
- 300 ktas
- Long-range cruise speed
- 243 ktas
- Rate of climb
- 2,380 fpm
Weights
- Max take-off weight
- 6,578 lb
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cross-section data not published
Cabin width
–
Cabin height
–
- Club seating
- Seating
- Lavatory
- Baggage
04 · Range map
Where the TBM 700 can fly nonstop
Range shown
1,550 nm
Published OEM range (Max fuel at economical cruise (243 KTAS at 30,000 ft), 45 min reserve; TBM 700 early-model data): 1,550 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
Nonstop from Dubai (DWC)
- Riyadh461 nm
- Mumbai1,044 nm
- Cairo1,301 nm
- Istanbul1,642 nm
- Nairobi1,898 nm
- Moscow2,004 nm
- Nice2,588 nm
- Geneva2,662 nm
- Paris2,840 nm
- London2,977 nm
- Singapore3,160 nm
- Lagos3,169 nm
- Hong Kong3,211 nm
- Johannesburg3,439 nm
- Dakar4,084 nm
- Tokyo4,305 nm
- New York5,951 nm
- Sydney6,502 nm
- São Paulo6,580 nm
- Miami6,810 nm
- Los Angeles7,240 nm
- Buenos Aires7,365 nm
- Mexico City7,769 nm
