Out of productionHawker
Hawker 700 (HS.125-700)
- Midsize Jet
- 8 pax
- 2,550 nm
Midsize JetOut of production
Raytheon Aircraft
- Passengers
- 8
- Range
- 2,540 nm
- Max cruise
- 447 ktas
- Cabin height
- 5.75 ft
- Max altitude
- 41,000 ft
01 · Basic info
Hawker Hawker 800XPi
Late production version of the Hawker 800XP introduced by Raytheon in the mid-2000s, with Rockwell Collins Pro Line 21 avionics, the Airshow 21 cabin management system and a restyled cabin with LED lighting and more baggage space. It is powered by two Honeywell TFE731-5BR turbofans. It was succeeded by the winglet-equipped Hawker 850XP, certified in March 2006.
- Manufacturer
- Raytheon Aircraft
- Class
- Midsize Jet
- Production
- Out of production
- Engines
- 2 × Honeywell TFE731-5BR
1 / 3

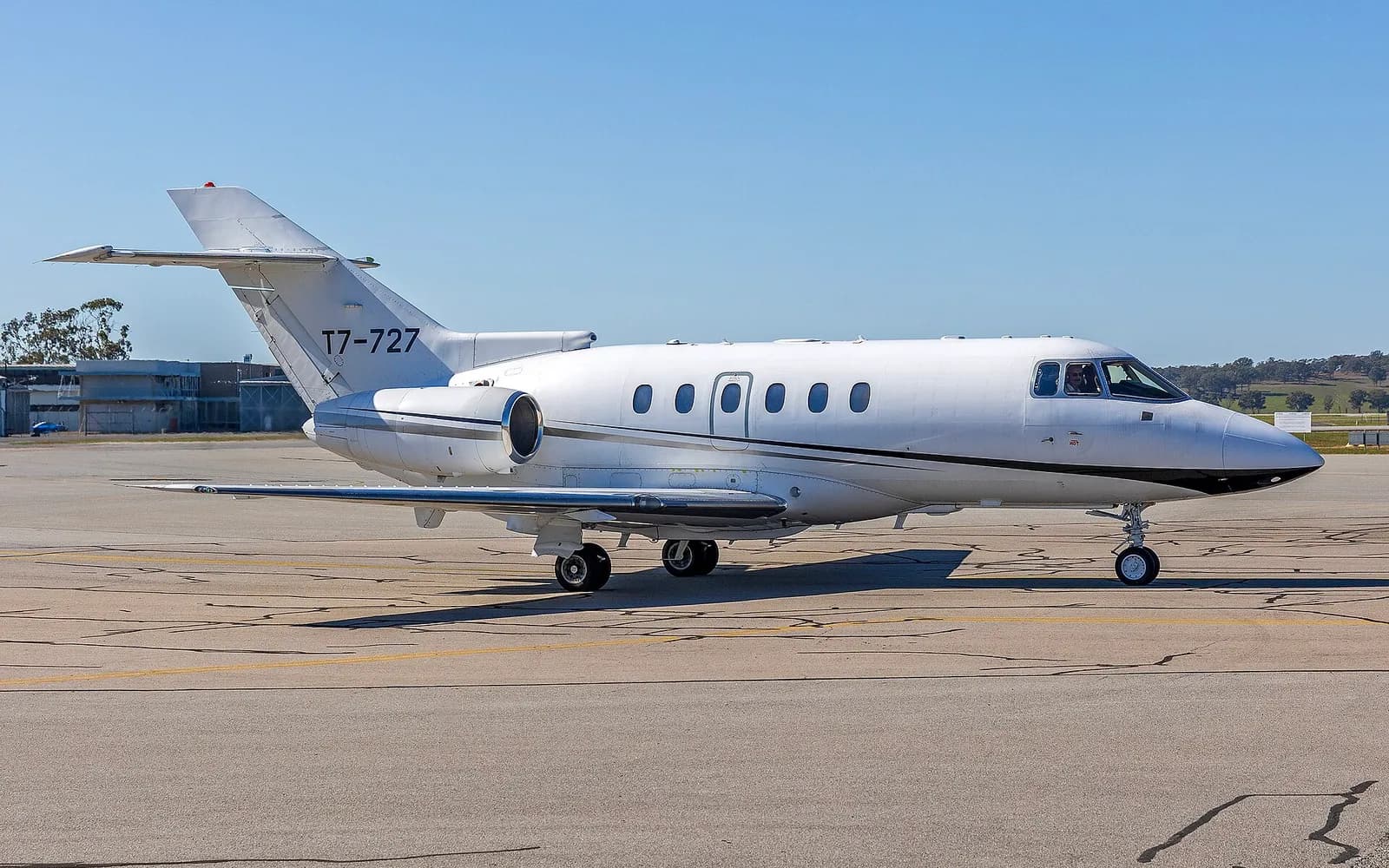

Photo: Bidgee · Wikimedia Commons · CC BY-SA 3.0 au
02 · Specifications
Technical data
Capacity
- Flight crew
- 2
- Seats (typical)
- 8
- Seats (maximum)
- 15
- Cabin length
- 21.33 ft
- Cabin width
- 6 ft
- Cabin height
- 5.75 ft
- Overall baggage volume
- 50 cu ft
- Max payload
- 2,200 lb
- Max payload with full fuel
- 1,870 lb
External dimensions
- Length
- 51.17 ft
- Height
- 18.08 ft
- Wingspan
- 51.33 ft
Performance
- Range
- 2,540 nm
- Range conditions
- 4 passengers, NBAA IFR reserves (Raytheon Hawker 800XP technical data, 2005 edition)
- Max cruise speed
- 447 ktas
- Long-range cruise speed
- 402 ktas
- Max operating altitude
- 41,000 ft
- Take-off distance
- 5,032 ft
- Landing distance
- 2,650 ft
Powerplant
- Engines
- 2 × Honeywell TFE731-5BR
- Thrust (each)
- 4,660 lbf
Weights
- Max take-off weight
- 28,000 lb
- Max landing weight
- 23,350 lb
- Max fuel
- 10,000 lb
- Basic operating weight
- 16,136 lb
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cabin width
6.00 ft / 1.83 m
Cabin height
5.75 ft / 1.75 m
- Club seating
- Seating
- Lavatory
- Baggage
04 · Range map
Where the Hawker 800XPi can fly nonstop
Range shown
2,540 nm
Published OEM range (4 passengers, NBAA IFR reserves (Raytheon Hawker 800XP technical data, 2005 edition)): 2,540 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
Nonstop from Dubai (DWC)
- Riyadh461 nm
- Mumbai1,044 nm
- Cairo1,301 nm
- Istanbul1,642 nm
- Nairobi1,898 nm
- Moscow2,004 nm
- Nice2,588 nm
- Geneva2,662 nm
- Paris2,840 nm
- London2,977 nm
- Singapore3,160 nm
- Lagos3,169 nm
- Hong Kong3,211 nm
- Johannesburg3,439 nm
- Dakar4,084 nm
- Tokyo4,305 nm
- New York5,951 nm
- Sydney6,502 nm
- São Paulo6,580 nm
- Miami6,810 nm
- Los Angeles7,240 nm
- Buenos Aires7,365 nm
- Mexico City7,769 nm
