Leonardo A109E Power
The A109E Power is a twin-engine light helicopter of the Agusta A109 family, introduced in the late 1990s and later marketed as the AW109 Power. It was offered with either Pratt & Whitney Canada PW206C or Turbomeca Arrius 2K1 engines and seats one pilot and up to seven passengers. The cabin is complemented by a separate baggage compartment.
- Manufacturer
- Leonardo Helicopters
- Class
- Light Helicopter
- Production
- Out of production
- Engines
- 2 × Pratt & Whitney Canada PW206C or Turbomeca Arrius 2K1

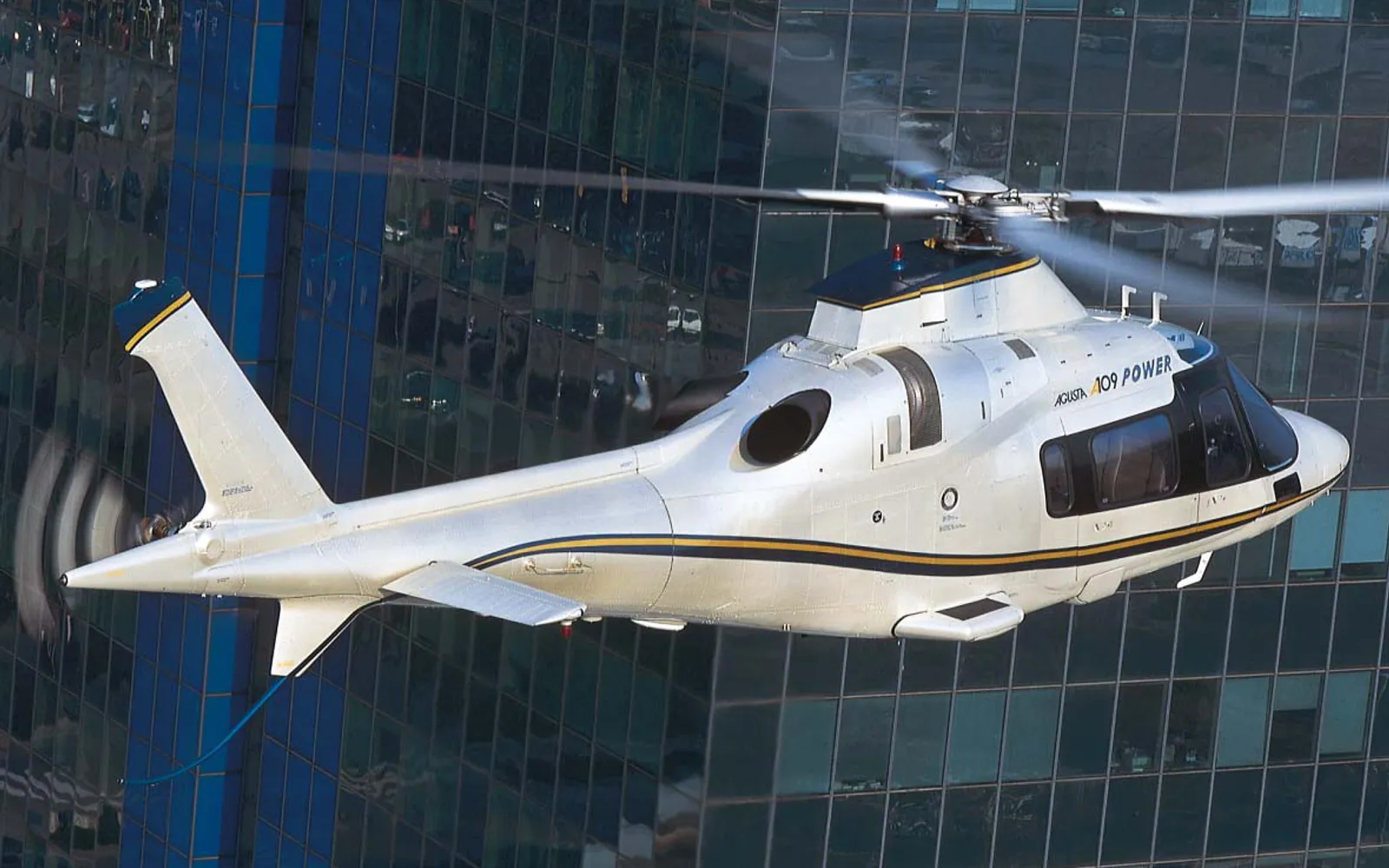

Photo: Leonardo · Wikimedia Commons · © Leonardo, manufacturer image
02 · Specifications
Technical data
Capacity
- Flight crew
- 1
- Seats (maximum)
- 7
- Overall baggage volume
- 34 cu ft
Powerplant
- Engines
- 2 × Pratt & Whitney Canada PW206C or Turbomeca Arrius 2K1
- Power (each)
- 640 shp
Weights
- Max take-off weight
- 6,283 lb
Performance
- Range
- 512 nm
- Range conditions
- 5-cell fuel system (221 US gal), 5,000 ft, ISA, no reserve (Agusta)
- Max cruise speed
- 154 ktas
- Rate of climb
- 1,930 fpm
External dimensions
- Length
- 42.78 ft
- Height
- 11.48 ft
- Main rotor diameter
- 36.09 ft
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cross-section data not published
Cabin width
–
Cabin height
–
- Club seating
- Baggage
04 · Range map
Where the A109E Power can fly nonstop
Range shown
512 nm
Published OEM range (5-cell fuel system (221 US gal), 5,000 ft, ISA, no reserve (Agusta)): 512 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
