01 · Basic info
Leonardo AW609
The AW609 is a twin-engine civil tiltrotor with a pressurised cabin, capable of vertical take-off and landing and airplane-mode cruise. It is powered by two Pratt & Whitney Canada PT6C-67A engines and seats nine passengers in standard configuration. The aircraft is in final certification testing with the FAA.
- Manufacturer
- Leonardo Helicopters
- Class
- Medium Helicopter
- Production
- In development
- Engines
- 2 × Pratt & Whitney Canada PT6C-67A
1 / 4

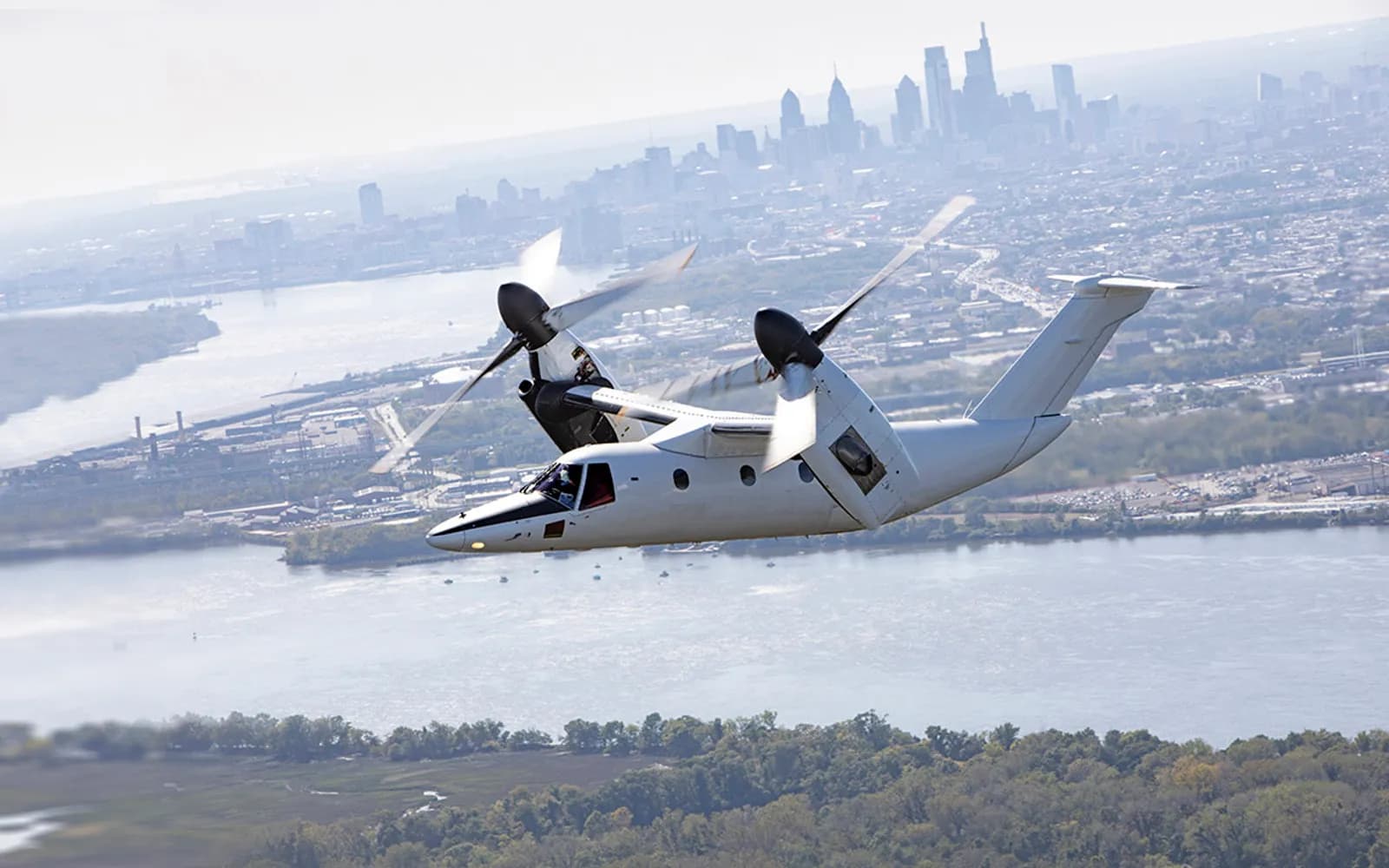

Photo: Leonardo Helicopters · Wikimedia Commons · © Leonardo Helicopters, manufacturer image
02 · Specifications
Technical data
Capacity
- Flight crew
- 2
- Seats (typical)
- 9
- Seats (maximum)
- 9
Powerplant
- Engines
- 2 × Pratt & Whitney Canada PT6C-67A
- Power (each)
- 1,940 shp
Performance
- Range
- 700 nm
- Range conditions
- Leonardo headline range (1,000 nm with auxiliary fuel)
- Max cruise speed
- 270 ktas
- Service ceiling
- 25,000 ft
External dimensions
- Length
- 46 ft
- Height
- 16.75 ft
- Main rotor diameter
- 25.92 ft
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cross-section data not published
Cabin width
–
Cabin height
–
- Club seating
- Baggage
04 · Range map
Where the AW609 can fly nonstop
Range shown
700 nm
Published OEM range (Leonardo headline range (1,000 nm with auxiliary fuel)): 700 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
