01 · Basic info
Sikorsky S-76C++
The S-76C++ is a twin-engine medium helicopter in the Sikorsky S-76 family with retractable landing gear. It is powered by two Turbomeca Arriel 2S2 engines and replaced earlier S-76 versions in production in 2006. It was succeeded by the S-76D.
- Manufacturer
- Sikorsky (Lockheed Martin)
- Class
- Medium Helicopter
- Production
- Out of production
- Engines
- 2 × Turbomeca Arriel 2S2
1 / 3

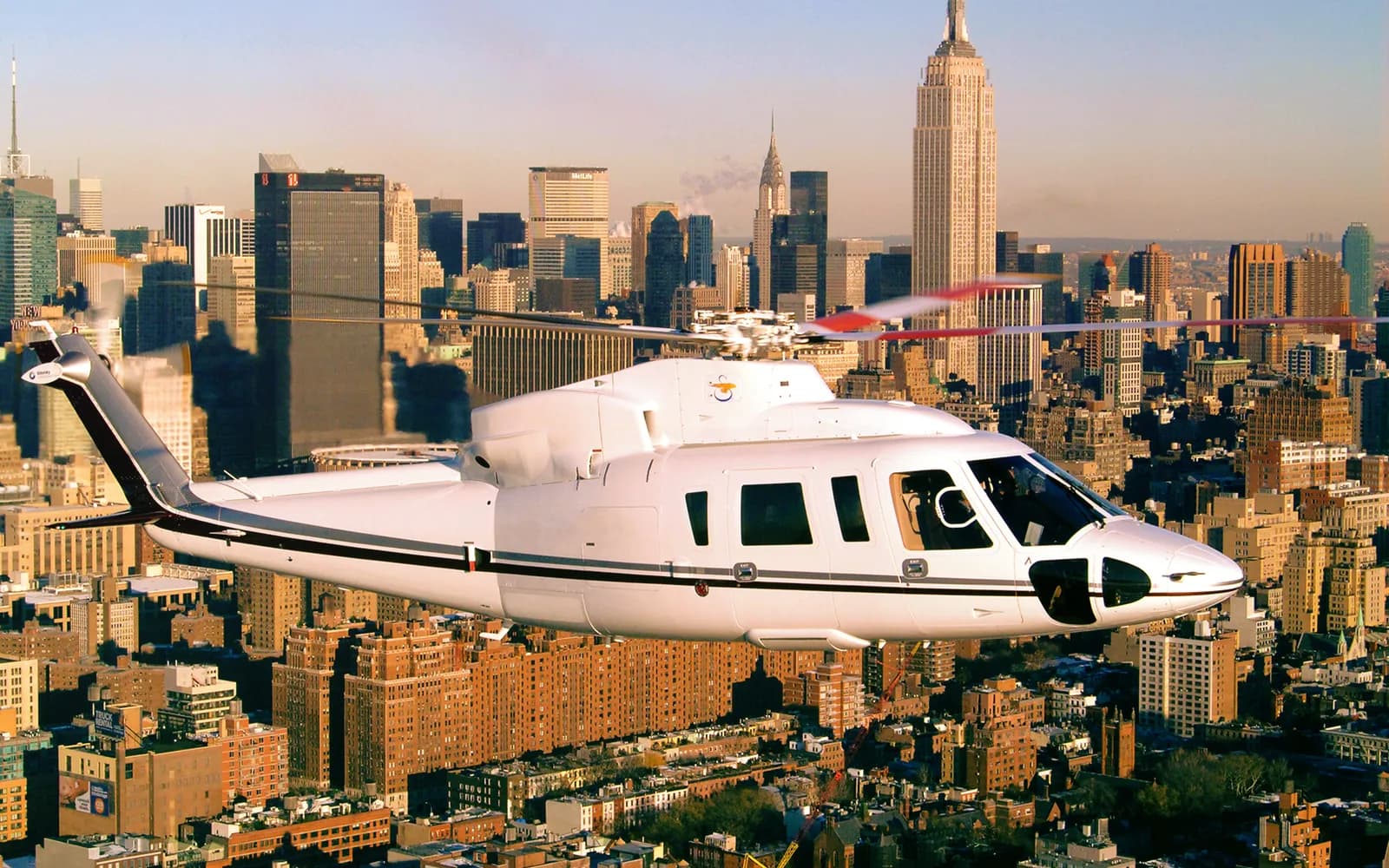

Photo: Sikorsky (Lockheed Martin) · Wikimedia Commons · © Sikorsky (Lockheed Martin), manufacturer image
02 · Specifications
Technical data
Capacity
- Flight crew
- 2
- Seats (typical)
- 12
- Seats (maximum)
- 13
- Cabin length
- 7.92 ft
- Cabin width
- 6.33 ft
- Cabin height
- 4.42 ft
- Overall baggage volume
- 38 cu ft
External dimensions
- Length
- 52.5 ft
- Height
- 14.5 ft
- Main rotor diameter
- 44 ft
Performance
- Range
- 411 nm
- Range conditions
- Long-range cruise at 4,000 ft, no reserve (345 nm with 30-min reserve) (Sikorsky)
- Max cruise speed
- 155 ktas
- Long-range cruise speed
- 137 ktas
Powerplant
- Engines
- 2 × Turbomeca Arriel 2S2
- Power (each)
- 922 shp
Weights
- Max take-off weight
- 11,700 lb
Manufacturer-published or publicly documented type data, for orientation only. Figures vary with configuration, serial number, modifications and operating conditions. Not for flight planning. Values not publicly documented are omitted.
03 · Cabin layout
Cabin plan & cross-section
Cabin width
6.33 ft / 1.93 m
Cabin height
4.42 ft / 1.35 m
- Club seating
- Baggage
04 · Range map
Where the S-76C++ can fly nonstop
Range shown
411 nm
Published OEM range (Long-range cruise at 4,000 ft, no reserve (345 nm with 30-min reserve) (Sikorsky)): 411 nm. Great-circle distances, still air. Real-world range depends on payload, winds, temperature, routing and reserves, always confirm with a flight-planning study.
